تفاصيل المنتج:
|
| قوة الليزر: | 2000 واط و 1500 واط | مواد القطع: | الفولاذ المقاوم للصدأ الكربون الصلب الخ |
|---|---|---|---|
| رأس الليزر: | أوسيبوروي | مصدر الليزر: | ماكس 1500 واط 2000 واط |
| نظام التحكم: | فانجي | جدول العمل: | 1500x3000 ملم |
| سرعة القطع القصوى: | 30m/دقيقة | سمك القطع القصوى: | 22mm |
| قوة: | 22 فولت 3 مراحل 50 ~ 60 هرتز |

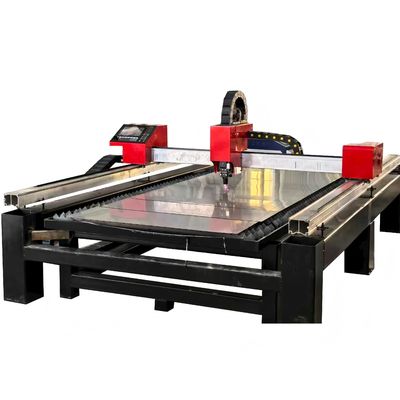

Protable 1500W 2000W 3000W Fiber Laser Cutting Machine
Machine table Features:
| Item | Data |
| Model | GS-1530F |
| Laser power | 2000/15000W |
| Working Table | Sawtooth |
| Maximum Idle Running Speed | 40m/min |
| Cutting Thickness | Stainless Steel≤6mm , Carbon Steel≤12mm |
| Control System |
Fangling |
| Driver system | 750W Leadshine servo motor |
| Guider system | HIWIN made in Taiwan |
| Rack system | YYC Taiwan |
| Warranty time | 2 years |
| Delivery time | 15 days |
| Power supply | AC220V/50HZ, |
Manufacturing Technique
|
Fiber laser power from Max or Raycus 2000W |
|
|
Cutting torch from
Ousipurui |
|
Controller from Fangling-L5210H |
|
Chillser brand S&A |

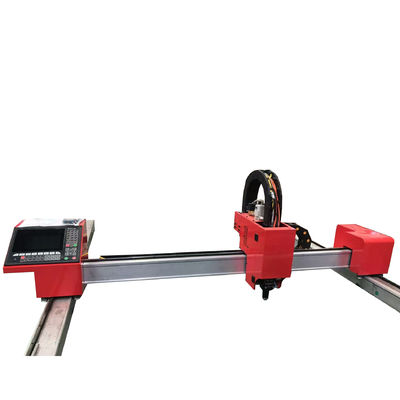

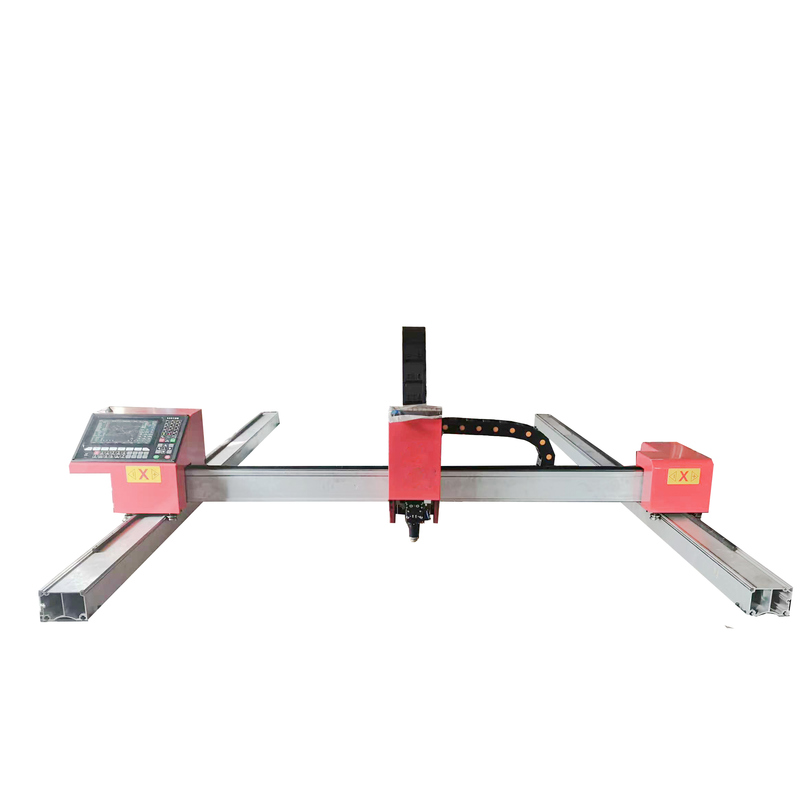

Portable laser cutting machine(excluding material table)consists of three parts:cutting host,water cooler and voltage stabilizer (optional).Packing size (mm), host: 3600*600*700; chiller: 740*570*1150; voltage regulator: 430*385*740;three parts total volume:3.3CBM;three parts weight:400 kg.
